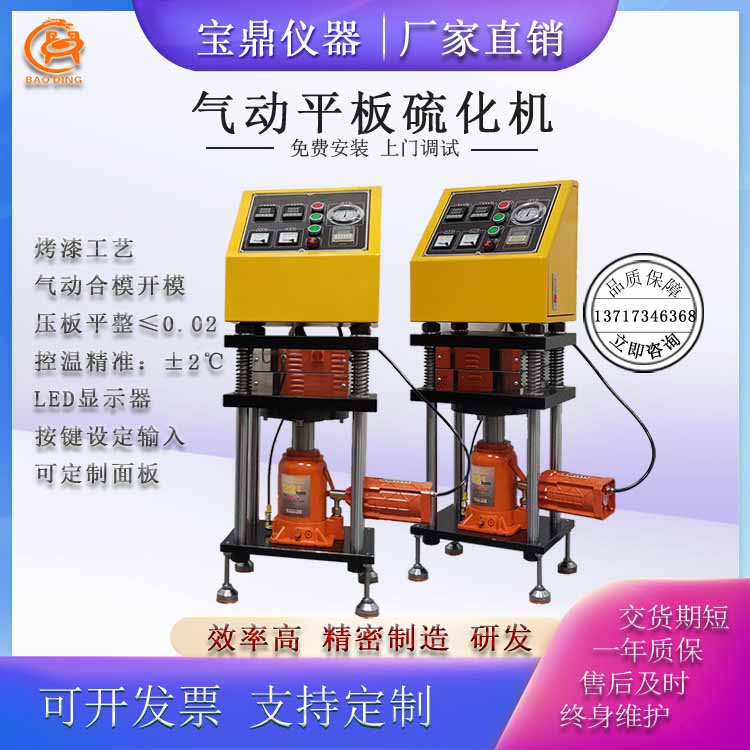

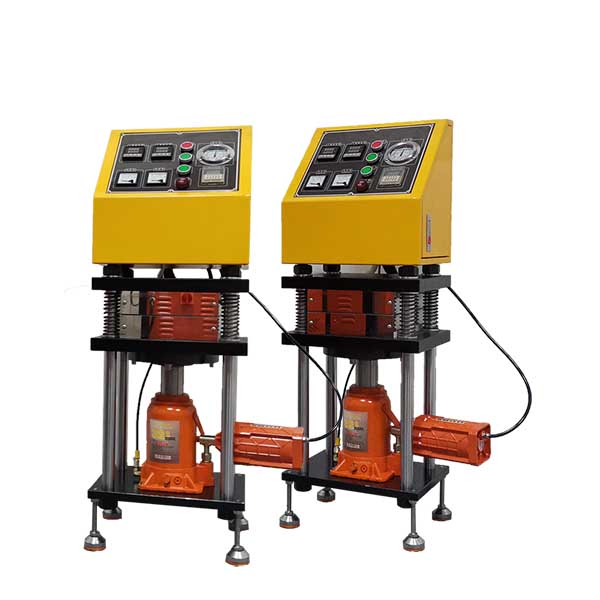

气动平板硫化机BD-8820-D

Pneumatic flat vulcanizerBD-8820-D

The raw materials are placed in the mold and clamped in the electric heating plate room of the machine to apply pressure and temperature to form the raw materials for test, which can be used as the basis for mass production of ingredients in the factory.

1. Capacity: 10 / 20 / 30 tons (optional)

2. Temperature range: normal temperature ~ 300 ° C

3. Temperature controller: LED digital display, key setting input, numerical display output

4. Temperature accuracy: ± 2 ℃

5. Heating method: electric heating tube

6. Clamping mode: Pneumatic

7. Air source pressure: 0.5 ~ 0.8MPa (customer provided air source interface)

8. Heating time: About 25min at 0 ~ 200 ° C

9. Timer: LED digital display 0.1s ~ 99m ~ 9.9h vulcanization time, and alarm can be set

10. Pressing plate size: 220 × 220mm (other sizes can be customized)

11. Number of laminate layers: single layer, upper and lower molding plate heating (double layer can be customized)
